MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THDCS-40PV | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 500 | 600 | 800 | 1000 | 1200 | 1500 | ||||
| No of Poles | 2 pole | 3 pole | ||||||||
| Max. Discharging Current Imax (kA) (8/20us) | 40 | |||||||||
| Type | Type 2 | |||||||||
| Voltage protection level Up (kV) | 2.8 | 3.5 | ||||||||
| Nominal discharge current (8/20μs) In (kA) | 20 | |||||||||
| Response time tA (ns) | < 25 | |||||||||
| Protection Grade | IP20 | |||||||||
| Indication of invalidation | Green: Normal, red: Invalidation | |||||||||
| Application | Line-level protection | |||||||||
| Remote Signal Function | Can also picking | |||||||||
| Remarks | Other maxi continuous operating voltage can be customized | |||||||||
Product Tags
- Product Tags: Surge protection for solar power systems Industrial surge protector High-energy surge protection Nominal discharge current surge suppressor Line-level surge protection device IP20 rated surge protector Remote signal surge monitoring Lightning surge protection device Voltage surge suppressor Reliable surge protector for industrial equipment

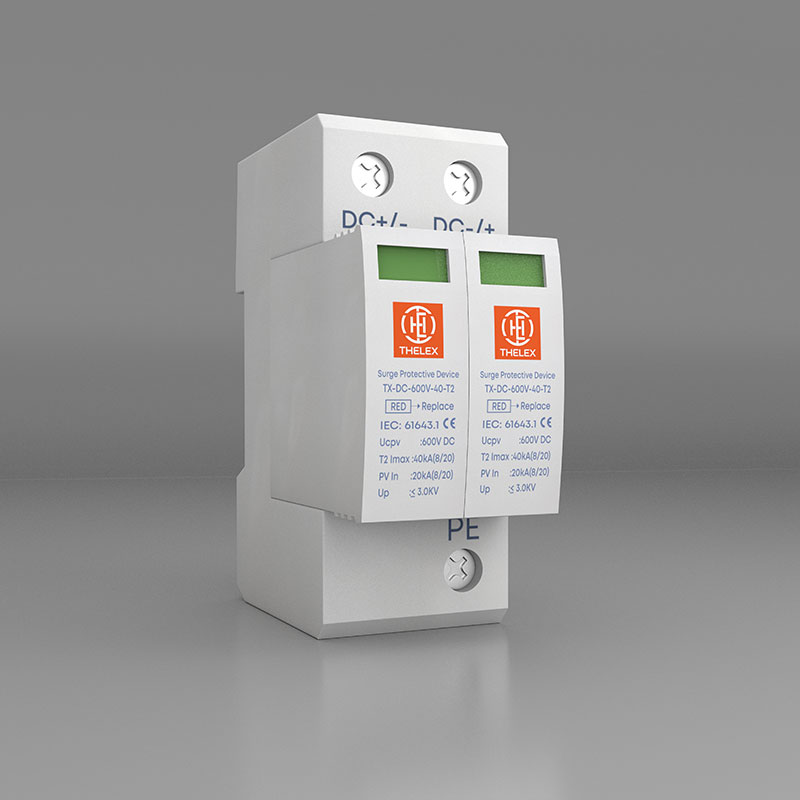

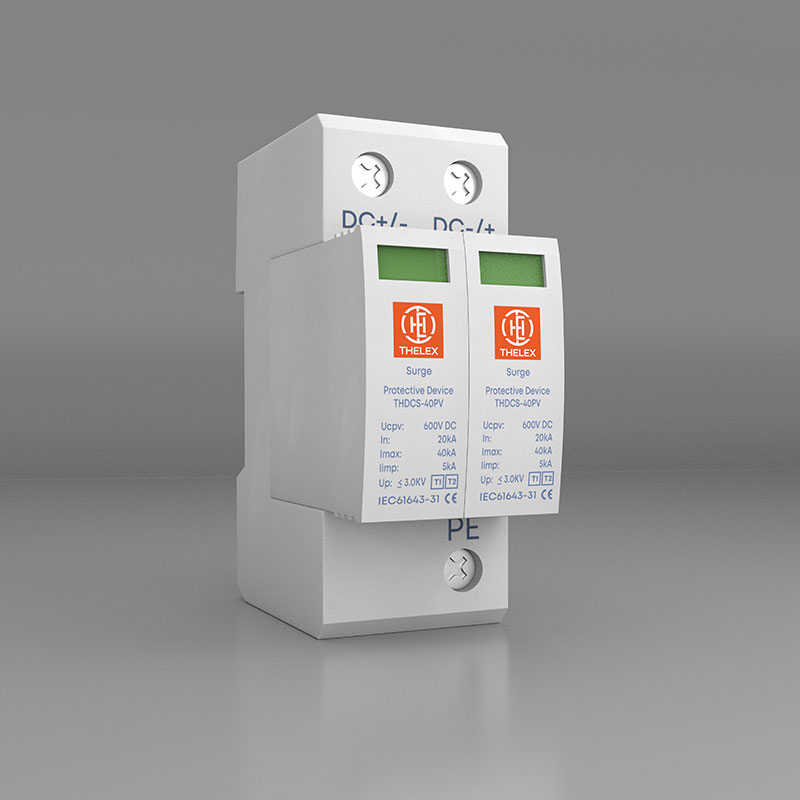

Product Description: THDCS-40PV Surge Protection Device (DC SPD Type-2 40kA)
The THDCS-40PV is a state-of-the-art surge protection device (SPD) designed to safeguard electrical systems, including solar power systems, from transient overvoltage's and lightning strikes. With its advanced surge suppression technology, the THDCS-40PV ensures the longevity and efficiency of critical equipment by diverting high-energy transients to the ground.
Key Features:

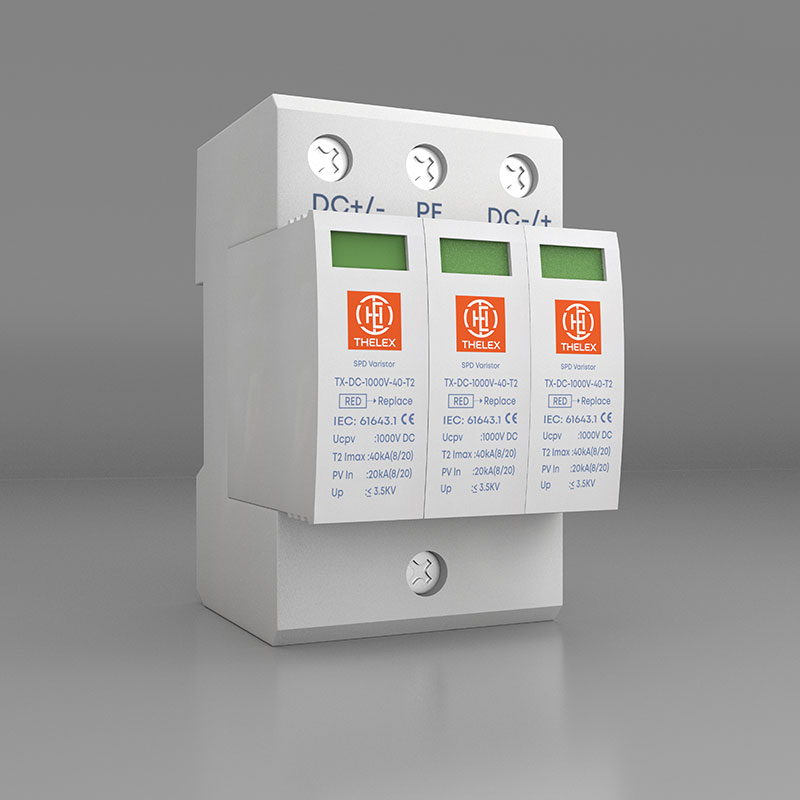

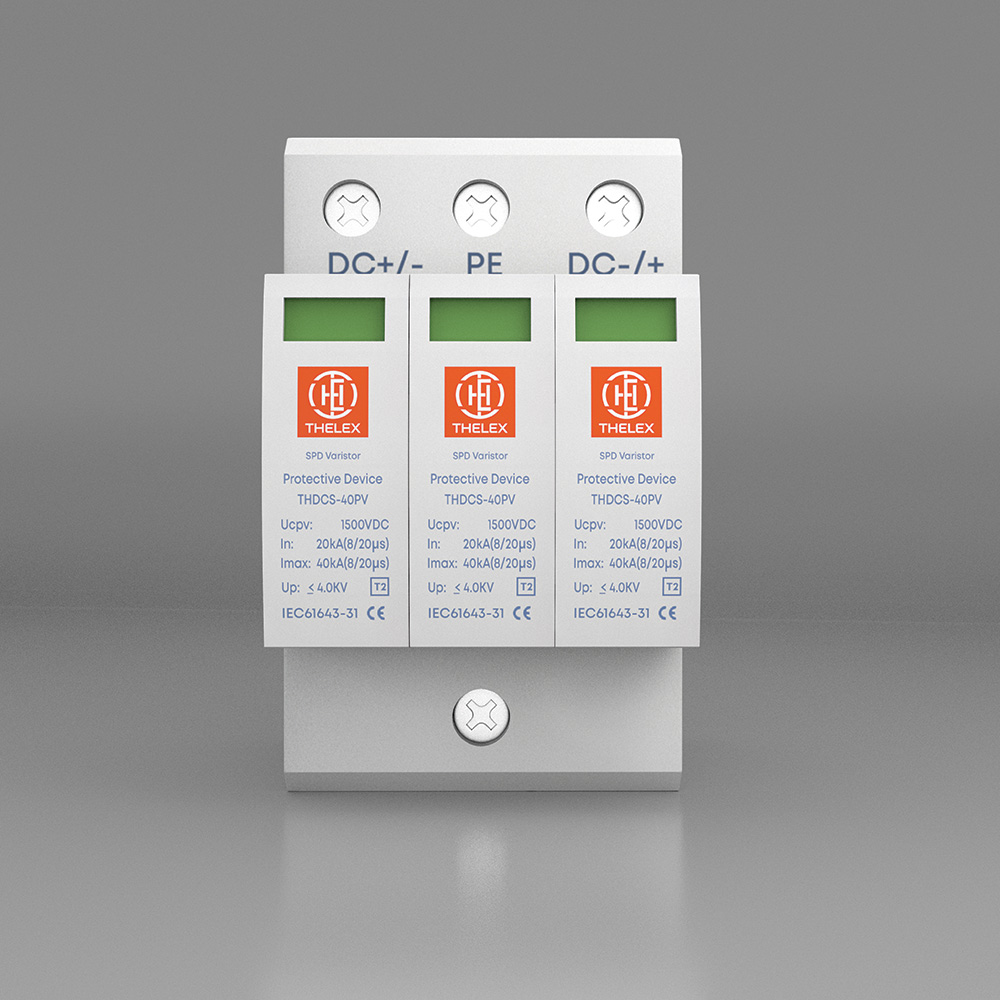

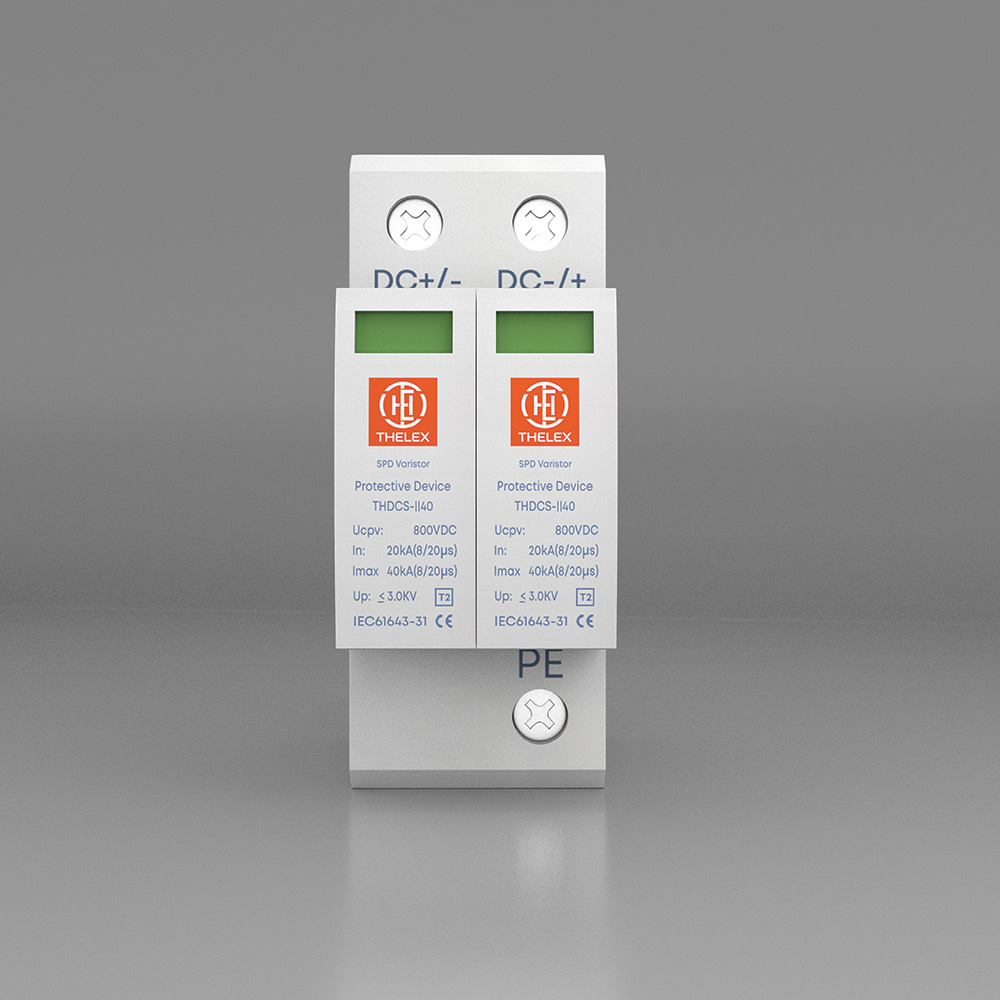

•Versatile Pole Options:
Available in both 2-pole and 3-pole configurations, the THDCS-40PV can be tailored to meet the needs of various electrical setups, from residential to industrial applications.
•Max. Continuous Operating Voltage (Uc):
The device supports a range of 500V, 600V, 800V, 1000V, 1200V, and 1500V configurations, offering flexibility to suit a variety of electrical systems, including solar power systems, HVAC equipment, and industrial control systems.
•Voltage Protection Level (Up):
The THDCS-40PV provides reliable surge protection with a voltage protection level of 2.8kV (for lower voltage options) or 3.5kV (for higher voltage options), effectively mitigating voltage spikes and safeguarding connected equipment.
•High Inrush Current Capability:
With a maximum discharging current (Imax) of 40kA (8/20μs), the THDCS-40PV is capable of handling significant surge events, protecting valuable electrical equipment from high-energy transients.
•Nominal Discharge Current (In):
Rated at 20kA (8/20μs), the device offers excellent surge protection for everyday electrical surges, ensuring minimal impact on equipment and infrastructure.
•Fast Response Time (tA):
With a response time of less than 25 ns, the THDCS-40PV provides rapid surge suppression, instantly reacting to transient overvoltages to protect sensitive devices.
•Protection Grade (IP20):
The THDCS-40PV is rated with an IP20 protection grade, making it suitable for use in dry, non-corrosive environments where physical protection from dust or contact with solid objects greater than 12mm is required.
•Indication of Invalidation:
The THDCS-40PV features a green indicator for normal operation and a red indicator for failure, ensuring that the status of the surge protection device can be easily monitored.
•Remote Signal Function:
Equipped with a remote signal function, this SPD allows users to monitor the operational status of the device from a distance, offering increased convenience and better system management.
•Customizable Voltage Options:
The THDCS-40PV offers the option to customize its maximum continuous operating voltage to better suit specific application requirements, providing added flexibility.
Additional Features of THDCS-40PV:
•IEC61643-11 Compliance: Fully compliant with industry standards for surge protection, ensuring safe and effective operation.
•Durability and Longevity: Designed for long-lasting protection, even in harsh environmental conditions, ensuring reliable performance over time.
•Cost-Effective Protection: Protect your critical electrical systems from expensive repairs and downtime by investing in the THDCS-40PV, a cost-effective solution for comprehensive surge protection.
Applications:
1.Solar Power Systems:
The THDCS-40PV is ideal for protecting solar power installations, including inverters, panels, and charge controllers, from surges caused by lightning strikes or electrical grid faults.
2.Industrial Equipment Protection:
This surge protector is perfect for safeguarding machinery, control systems, and electrical panels in industrial environments, where high-energy surges could otherwise cause costly damage.
3.Commercial Infrastructure:
Protect office buildings, data centers, and communication systems by using the THDCS-40PV to shield critical electrical infrastructure from transient overvoltages, ensuring smooth operations without interruptions.
4.Residential Applications:
Ideal for use in homes, the THDCS-40PV offers protection for home appliances, electrical systems, and renewable energy setups, such as solar panels, from unexpected electrical surges.
5.Renewable Energy Systems:
Apart from solar systems, the THDCS-40PV is also suitable for protecting other renewable energy setups, such as wind turbines, from power surges, preventing damage to the delicate electronics involved.
Why Choose THDCS-40PV Surge Protective Device?
Opt for the THDCS-40PV Surge Protective Device to ensure optimal protection for your electrical infrastructure. With its high surge capacity, fast response time, and versatile voltage options, it is perfect for safeguarding sensitive equipment in photovoltaic systems, industrial plants, and commercial buildings. Its ability to handle large surge events and the option for customizable configurations makes it a reliable and flexible solution for protecting electrical systems from lightning and other electrical disturbances.
