MODEL SPECIFICATION
MODEL AND SPECIFICATION | THACS-II10 | THACS-II20 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Max. continuous operating voltage Uc (V) | 275 | 320 | 385 | 420 | 750 | 275 | 320 | 385 | 420 | 750 |
No of Poles | 4 Pole | |||||||||
Max. Discharging Current Imax (kA) (8/20us) | 10 | 20 | ||||||||
Voltage protection level Up (kV) | 1.0 | 1.2 | 1.0 | 1.5 | 2.0 | 1.2 | 1.4 | 1.2 | 1.8 | 2.5 |
Nominal discharge current (8/20μs) In (kA) | 5 | 10 | ||||||||
Response time tA (ns) | < 25 | |||||||||
Protection Grade | IP20 | |||||||||
Standard | IEC61643-11 | |||||||||
Indication of invalidation | Green: Normal, red: Invalidation | |||||||||
Application | Several protection for in line | |||||||||
Remote Signal Function | Can also picking | |||||||||
Remarks | Other maxi continuous operating voltage can be customized |
Product Tags
- THACS-II10 and THACS-II20 Surge Protection Devices
- IEC61643-11 Compliant Voltage Protection Solutions
- 10kA and 20kA Discharge Current Surge Protectors
- In-Line Electrical Surge
- Protection Devices
- Industrial and Commercial Surge Protection SPDs
- Compact Surge Protection Devices for Homes and Businesses
- Lightning and Overvoltage Protection for Renewable Energy
- Quick-Response Electrical Surge Protection Devices
- IP20-Rated Surge Protectors for Sensitive Equipment
- Customizable Voltage Surge Protection Solutions
- Reliable Power Line Protection for Telecom Systems
- High-Performance Electrical Surge Mitigation Devices
- Advanced Residential Surge Protection Systems
- Efficient Surge Protectors for Solar and Wind Systems
- Remote Monitoring Enabled Surge Protection Devices

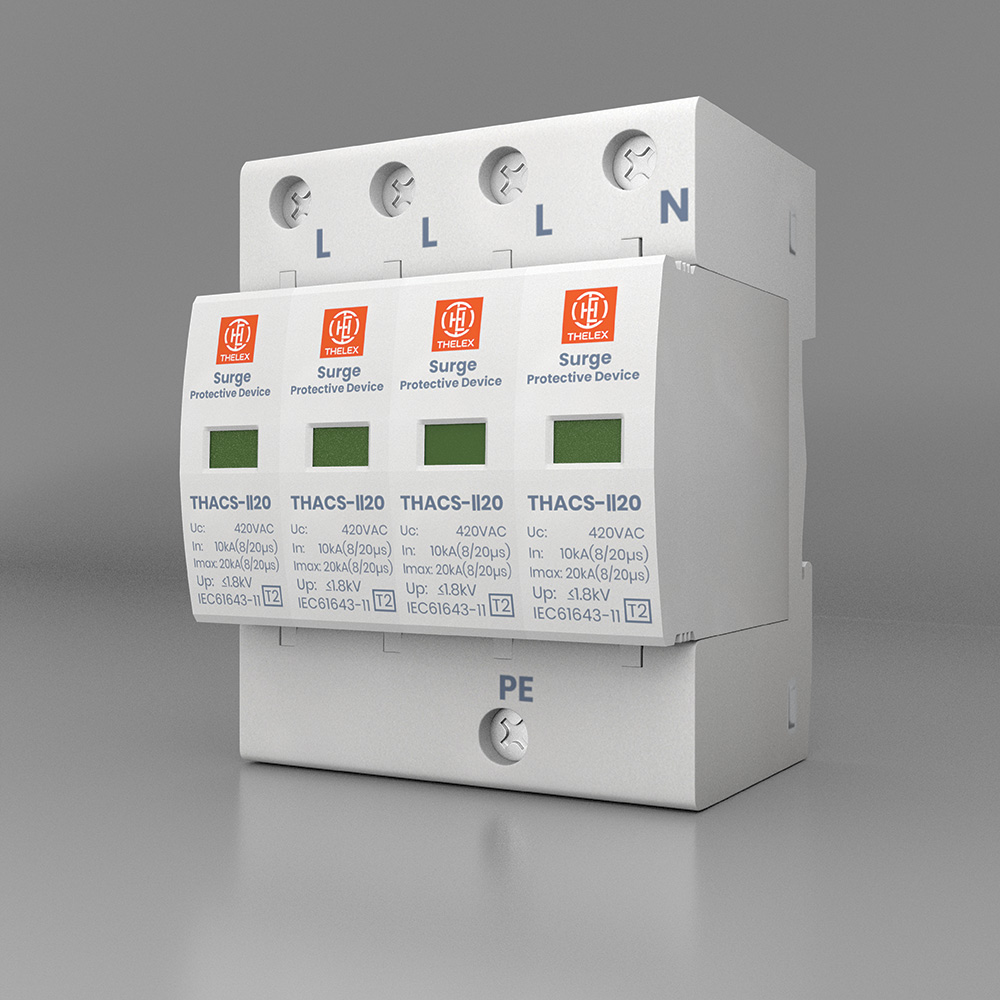

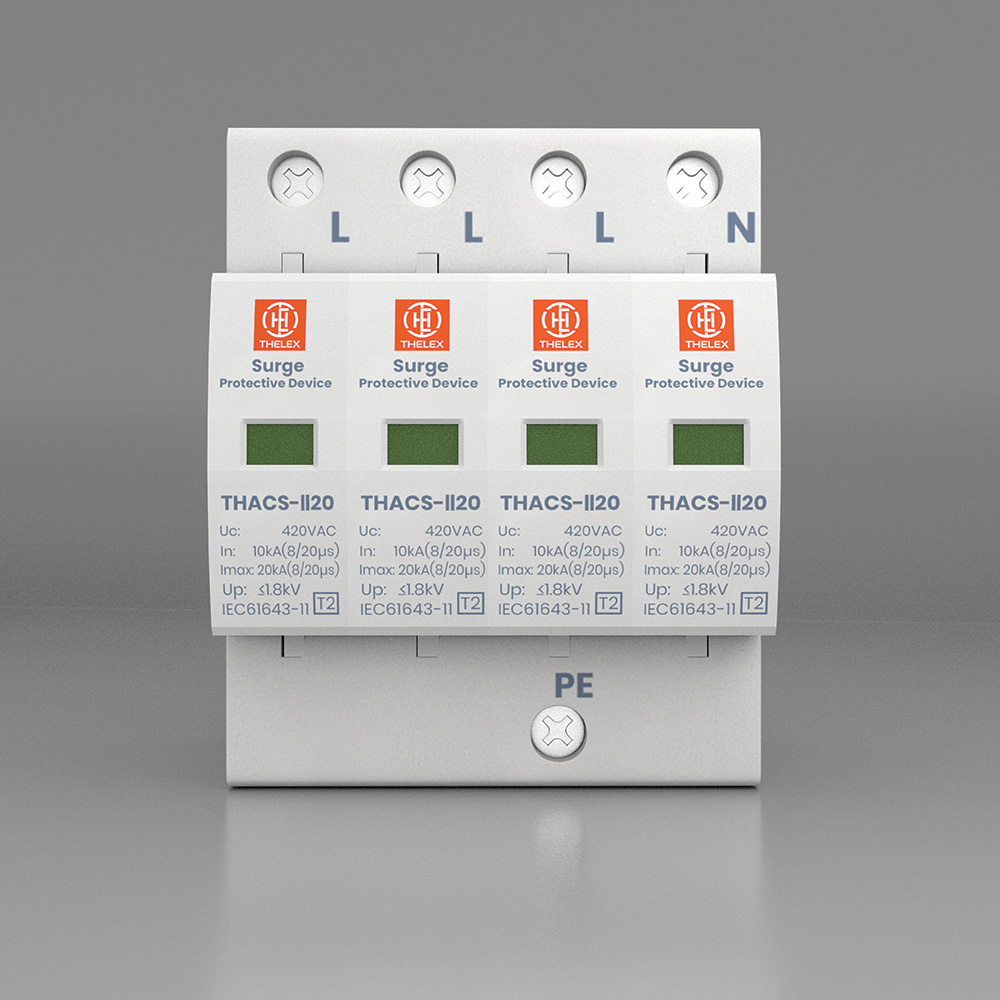

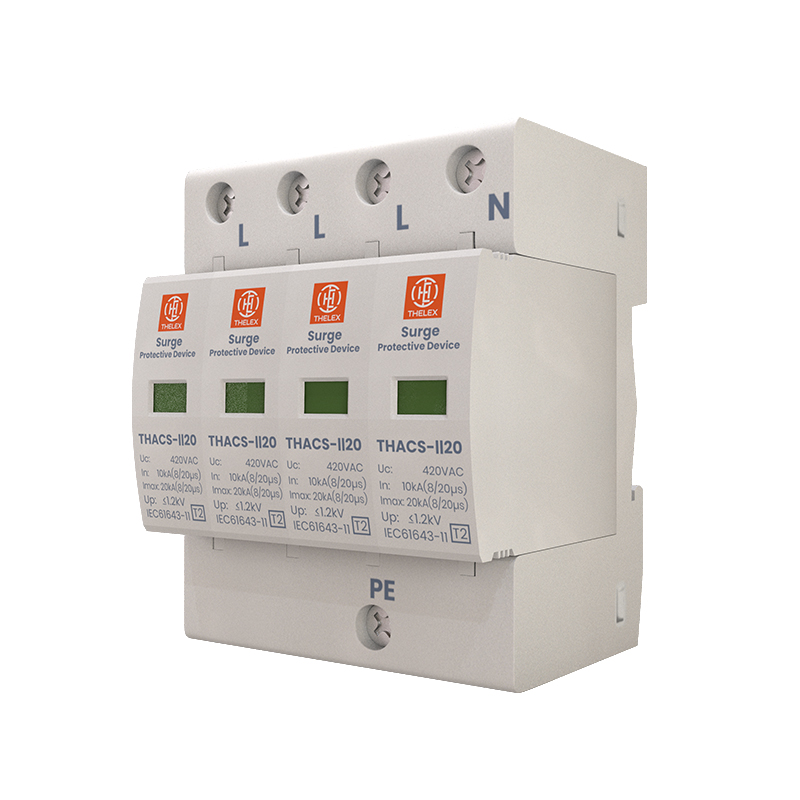

Product Description (20kA) (18mm OB)
The THACS-II10 and THACS-II20 are advanced surge protection devices (SPDs) designed for in-line protection across a variety of electrical and electronic systems. With their compact design and compliance with IEC61643-11 standards, they offer high-performance surge mitigation for industrial, commercial, and residential applications. Featuring a maximum discharge current of 10kA and 20kA, these devices ensure reliable operation under high-stress conditions.
Key Specifications:
•Max. Continuous Operating Voltage (Uc):
•THACS-II10: 275V, 320V, 385V, 420V, 750V
•THACS-II20: 275V, 320V, 385V, 420V, 750V
•Voltage Protection Level (Up):
•THACS-II10: 1.0kV, 1.2kV, 1.0kV, 1.5kV, 2.0kV
•THACS-II20: 1.2kV, 1.4kV, 1.2kV, 1.8kV, 2.5kV
•Maximum Discharge Current (Imax):
•THACS-II10: 10kA
•THACS-II20: 20kA
•Nominal Discharge Current (In):
•THACS-II10: 5kA
•THACS-II20: 10kA
•Response Time (tA): <25 nanoseconds
•Protection Grade: IP20
•Standard Compliance: IEC61643-11
•Indication of Invalidation:
•Green: Normal operation
Red: Failure
Applications:
1.Line-Level Protection:
Provides reliable surge defense for critical electrical lines.
2.Industrial and Commercial Systems:
Protects equipment and machinery in factories and commercial installations.
3.Residential Systems:
Ensures the safety and longevity of household appliances and electrical panels.
4.Renewable Energy Systems:
Safeguards solar inverters and wind energy setups from overvoltage events.
5.Telecommunication Equipment:
Protects sensitive communication systems and networks.
Additional Features:
•Remote Signal Function:
Enables integration into centralized monitoring systems.
•Customizable Voltage Options:
Tailored configurations for specific voltage requirements are available.
•Compact and Durable Design:
Engineered for versatile installation and reliable operation.
Why Choose THACS-II Series?
1.High Durability: Engineered for longevity and reliable performance in demanding environments.
2.Quick Response Time: Fast-acting protection ensures minimal system downtime.
3.Standards-Compliant: Certified to IEC61643-11, ensuring global reliability standards are met.
4.Customizable Voltage Range: Other maximum continuous operating voltages (Uc) can be customized to suit specific application needs.
