MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-II40 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 48 | 175 | 275 | 320 | 385 | 420 | 750 | 1000 | ||
| No of Poles | 4 Pole | |||||||||
| Max. Discharging Current Imax (kA) (8/20us) | 40 | |||||||||
| Voltage protection level Up (kV) | 0.6 | 1.3 | 1.5 | 1.6 | 1.8 | 2.0 | 3.0 | 3.5 | ||
| Nominal discharge current (8/20μs) In (kA) | 20 | |||||||||
| Response time tA (ns) | < 25 | |||||||||
| Protection Grade | IP20 | |||||||||
| Indication of invalidation | Green: Normal, red: Invalidation | |||||||||
| Application | Incoming line secondary protection | |||||||||
| Remote Signal Function | Can also picking | |||||||||
| Remarks | Other maxi continuous operating voltage can be customized | |||||||||
Product Tags
- THACS-II40 Surge Protection Device
- 40kA Surge Protector
- Incoming Line Surge Protection
- IEC61643-11 Surge Protection
- Nominal Discharge Current Surge Protection High Discharge Current Surge Protector
- Surge Protection for Power Distribution Systems
- Industrial Surge Protection Electrical Surge Protection Device
- Surge Protection for Renewable Energy Systems
- IP20 Surge Protection
- Surge Protection for Telecommunications Equipment

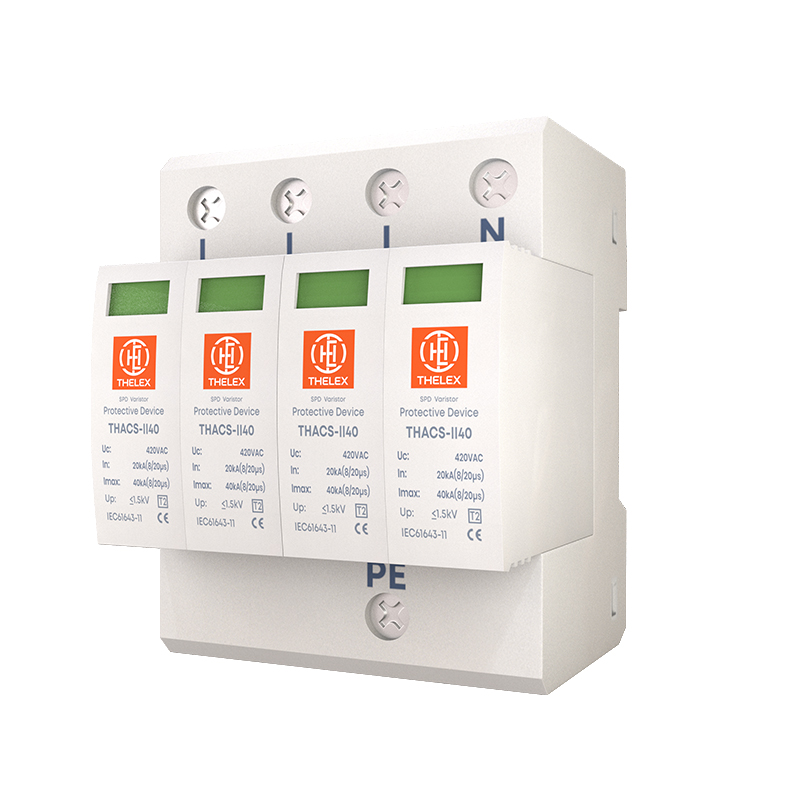

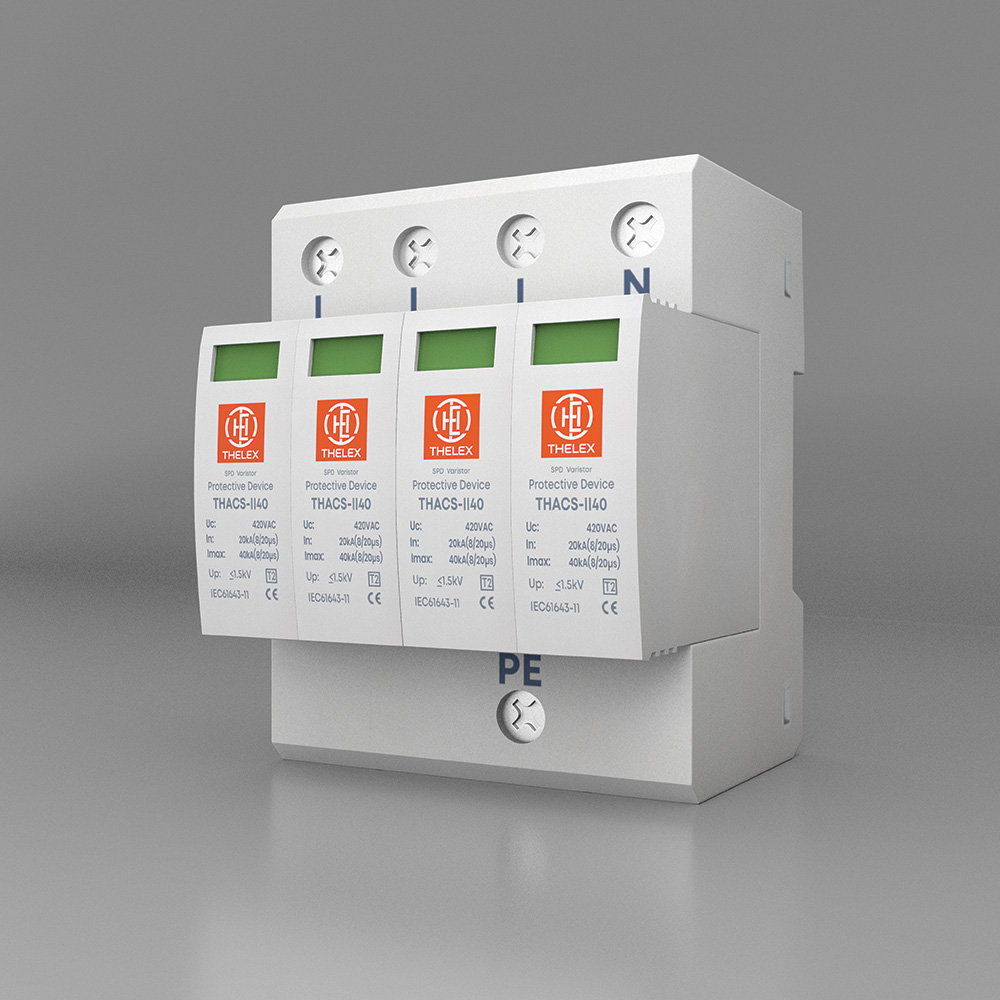

Product Description for THACS-II40 Surge Protection Device (40kA) (Integrated Shield)
The THACS-II40 Surge Protection Device is designed to provide superior protection for electrical systems, preventing damage caused by transient voltage surges. Whether in industrial, commercial, or residential applications, this device ensures the longevity of sensitive equipment by mitigating the impact of lightning strikes, switching transients, and other high-voltage events.
With a maximum discharging current capacity of 40kA, the THACS-II40 is ideal for incoming line secondary protection, safeguarding electrical infrastructure and connected devices. It is designed according to IEC61643-11 standards, making it a reliable and efficient solution for power distribution systems that require enhanced surge protection.
Key Specifications:
•Max. Continuous Operating Voltage (Uc):
Available in a variety of voltage ratings: 48V, 175V, 275V, 320V, 385V, 420V, 750V, and 1000V. Custom voltage configurations are available upon request.
•Voltage Protection Level (Up):
0.6kV to 3.5kV depending on the configuration, providing a range of protection levels suitable for various environments.
•Max. Discharging Current (Imax):
40kA (8/20μs waveform) to handle large surge events and protect critical infrastructure.
•Nominal Discharge Current (In):
20kA (8/20μs waveform) ensuring effective surge suppression under normal operating conditions.
•Response Time (tA):
< 25 nanoseconds, enabling the device to respond quickly to transient overvoltages and prevent damage to connected equipment.
•Protection Grade:
IP20 rated, ensuring the device is protected from physical contact and offering a high level of durability.
•Indication of Invalidation:
Green LED indicates normal operation, while Red LED signals failure, providing an easy-to-read status for monitoring.
Additional Features:
•Customizable Voltage Options:
Tailored voltage ratings available to suit specific system requirements.
•Remote Signal Functionality:
Includes remote signal capabilities for monitoring and alerting, enabling integration into smart systems for enhanced operational control.
•Reliable and Durable:
Built to withstand harsh conditions, the THACS-II40 ensures dependable protection in a variety of environments.
Applications:
1.Incoming Line Secondary Protection: Protects the secondary side of power lines, ensuring electrical systems and devices are shielded from surges originating from the power grid.
2.Power Distribution Systems: Ideal for safeguarding transformers, circuit breakers, and other components within power distribution networks, maintaining system reliability.
3.Industrial Equipment: Provides protection for industrial machinery, motors, PLCs, and inverters, preventing downtime and damage from electrical surges.
4.Renewable Energy Systems: Essential for protecting solar inverters, wind turbines, and other renewable energy systems from power surges, ensuring consistent energy production.
5.Telecommunications Equipment: Safeguards critical telecom infrastructure, including servers, routers, and communication lines, from voltage spikes caused by external factors like lightning.
6.Home and Office Electronics: Protects sensitive home and office equipment, including computers, air conditioning systems, and home appliances, from surges and spikes.
Why Choose THACS-II40?
1.High Discharge Capability: Handles surges up to 40 kA, ensuring reliable protection against high-energy events.
2.Fast Response Time: Activates in under 25 nanoseconds, minimizing damage risk.
3.Customizable Voltage Options: Flexible configurations cater to unique system requirements.
4.User-Friendly Indicators: Clear, easy-to-read status signals for quick diagnostics.
5.Durability and Compliance: Engineered to meet IEC61643-11 standards, ensuring long-term reliability.
6.Remote Monitoring Ready: Built-in remote signal functionality supports advanced system monitoring.
7.Wide Range of Applications: Suitable for residential, commercial, and industrial setups.
