MODEL SPECIFICATION

MODEL AND SPECIFICATION PV-63T PV-63T
Part Fuse holder Fuse link
Max. continuous operating voltage Uc (V) 1500 1500
Current Rating (A) 32A & 50A 2A 4A 6A 10A 16A 20A 25A 32A 40A 50A
Material ABS (FR Material) Body: Ceramic | Terminal: Pure Silver copper Fuse Element: Silver Millenium
Size 75 x 18 mm 10 x 85 mm 14 x 85 mm
Standard IEC60269-1 & 2 IEC60269-6
Indication of invalidation Disconnection of fuse element Disconnection of fuse element

Product Tags


  • 1500V fuse holder
  • PV-63T fuse holder
  • IEC60269 fuse holder
  • High voltage fuse protection
  • Fuse link for circuit protection
  • Ceramic fuse link
  • Pure silver copper terminal fuse
  • Silver Millenium fuse element
  • Electrical fuse protection
  • Current rated fuse holder



Product Description: PV-63T Fuse Holder & Fuse Link  (1500V)

The PV-63T Fuse Holder & Fuse Link is designed to provide superior protection for electrical circuits in demanding environments. With high current ratings, durable materials, and compliance with international standards, this product ensures the safety and longevity of your electrical systems.




Key Features:

Max. Continuous Operating Voltage (Uc):
Designed to handle up to 1500V, ensuring effective protection for high-voltage circuits and systems.


Current Rating:
The fuse holder and fuse link come with a wide range of current ratings, including:
2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, offering flexibility for various electrical applications.


Material Construction:

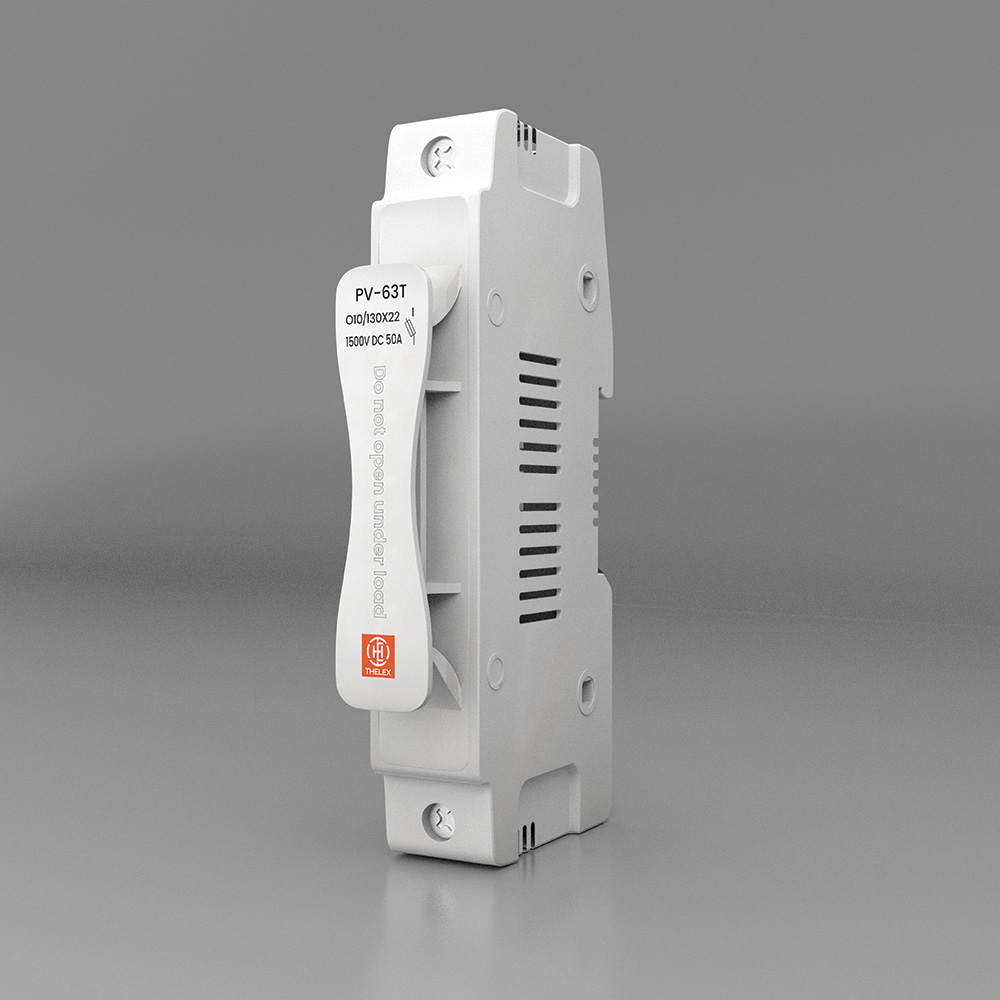

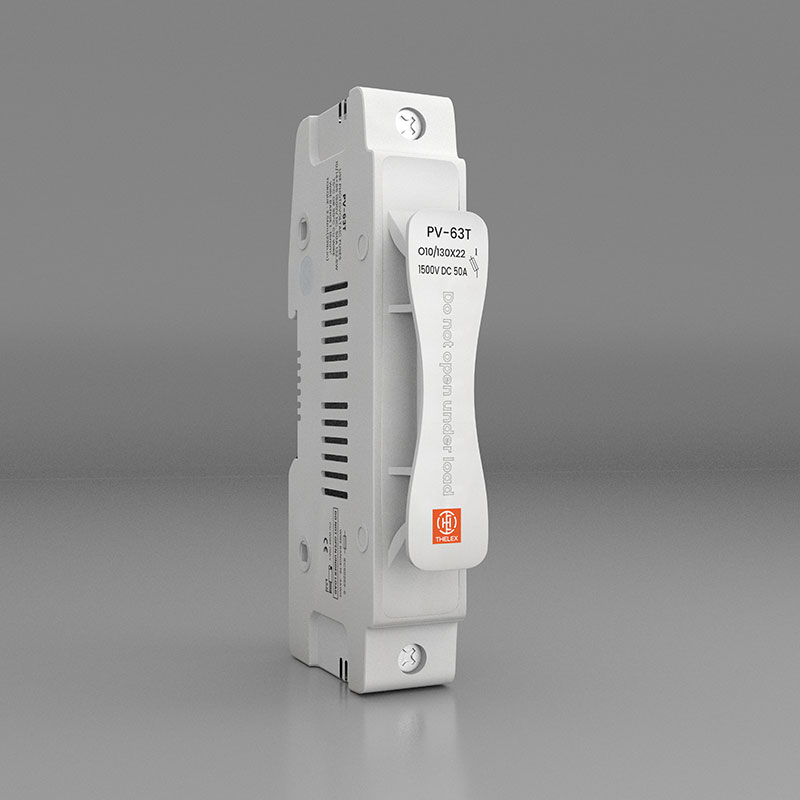

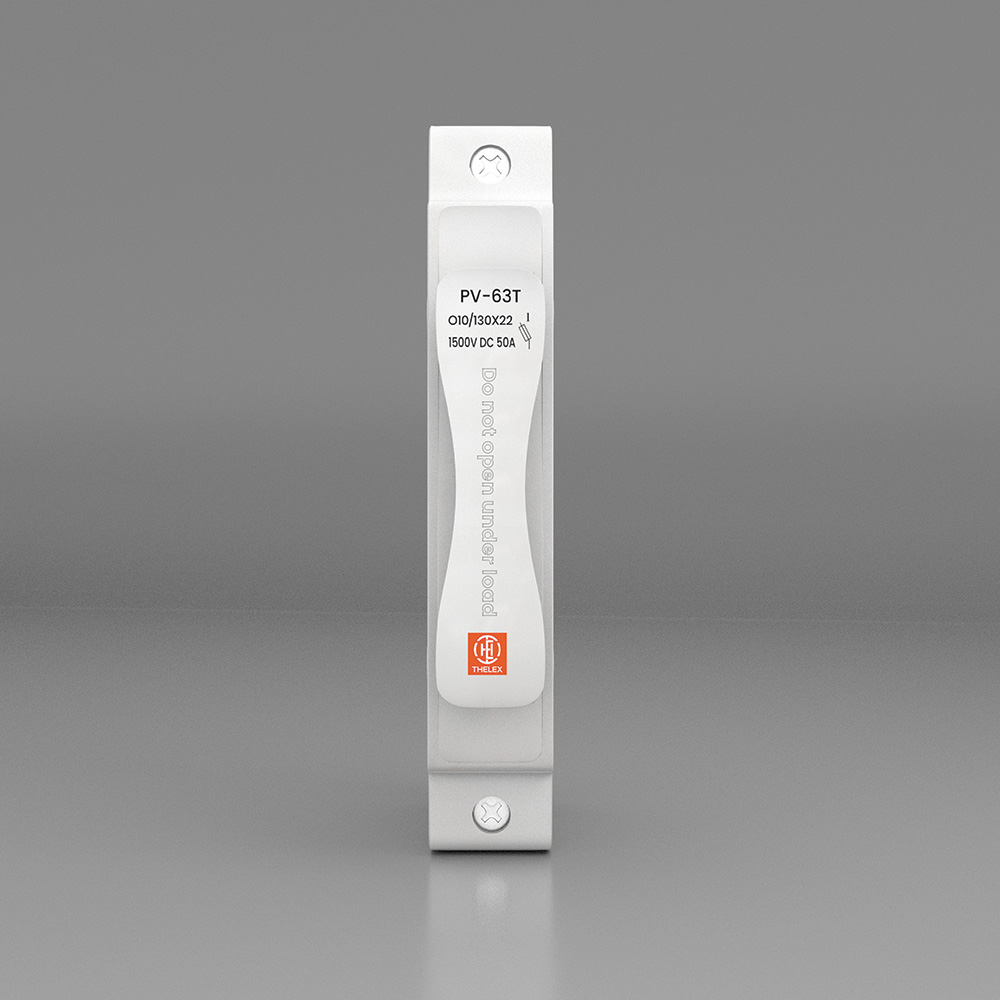

Fuse Holder: Constructed from ABS (FR Material), providing excellent flame resistance and durability.

Fuse Link:

Body: Ceramic

Terminal: Pure Silver Copper

Fuse Element: Silver Millenium
This combination ensures high conductivity, reliability, and longevity.


Size:

Fuse Holder Size: 75 x 18 mm

Fuse Link Sizes:

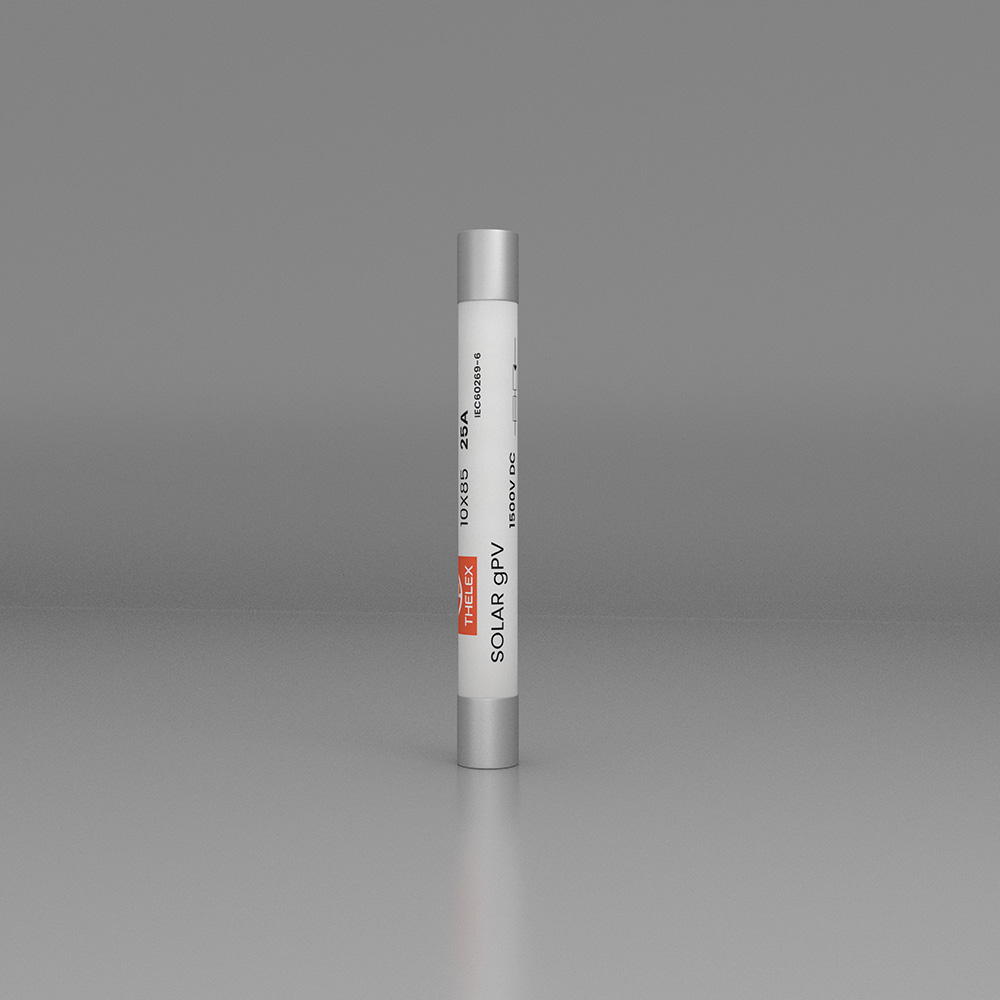

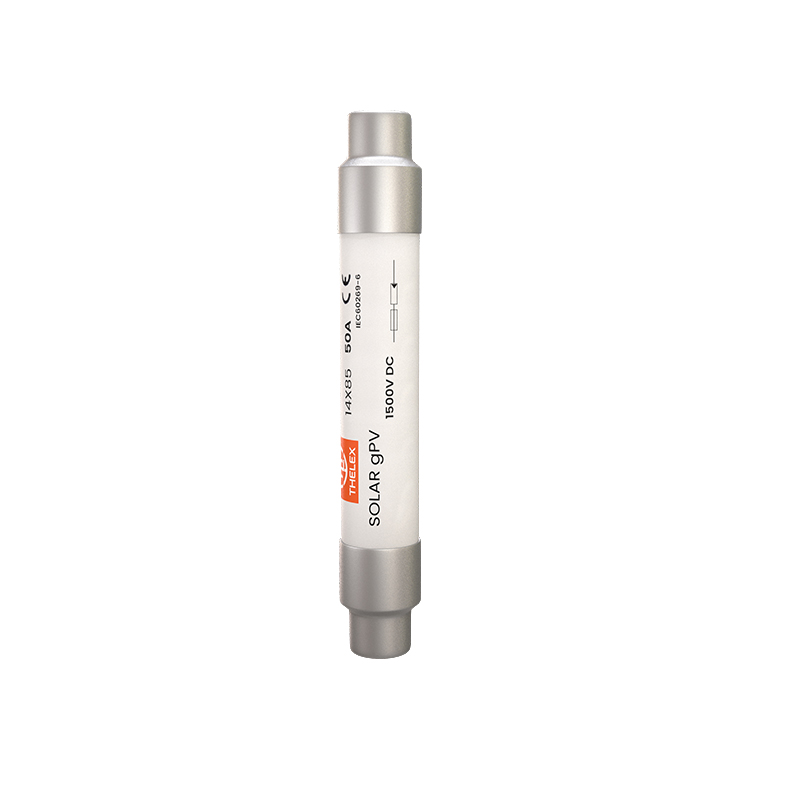

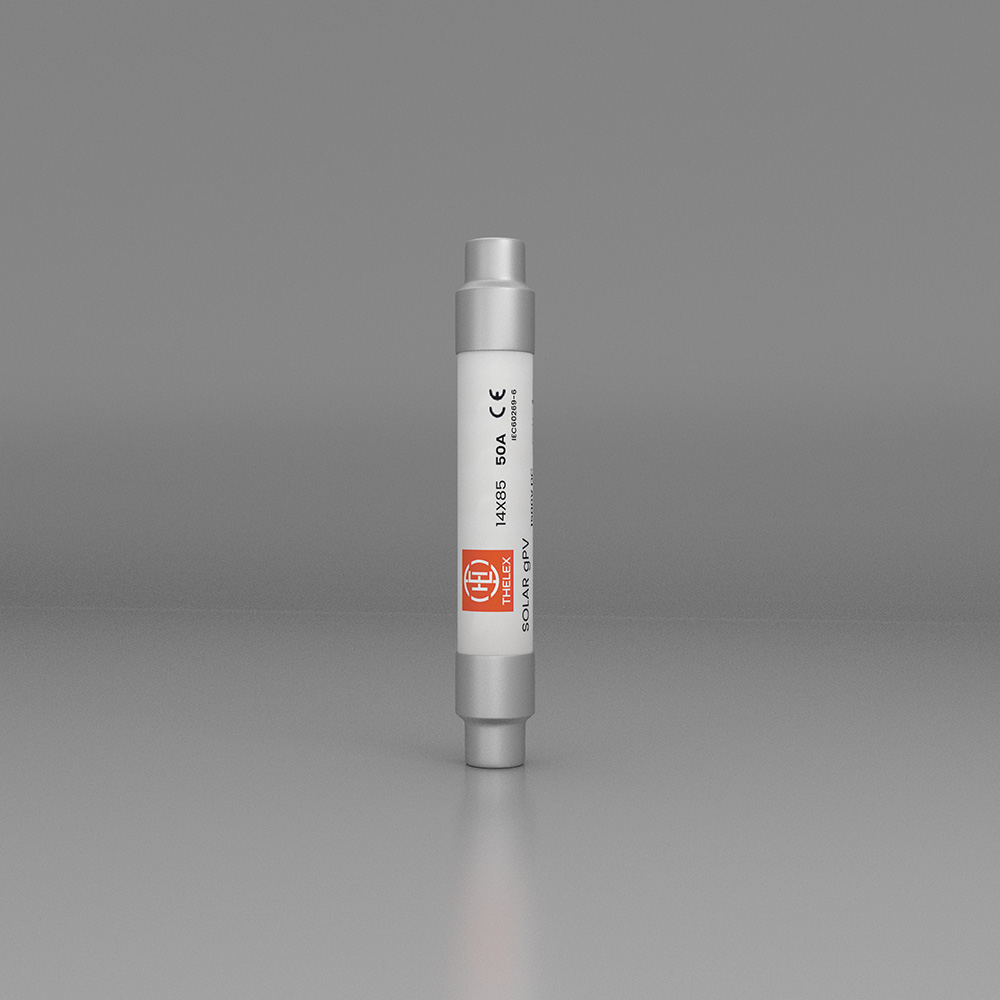

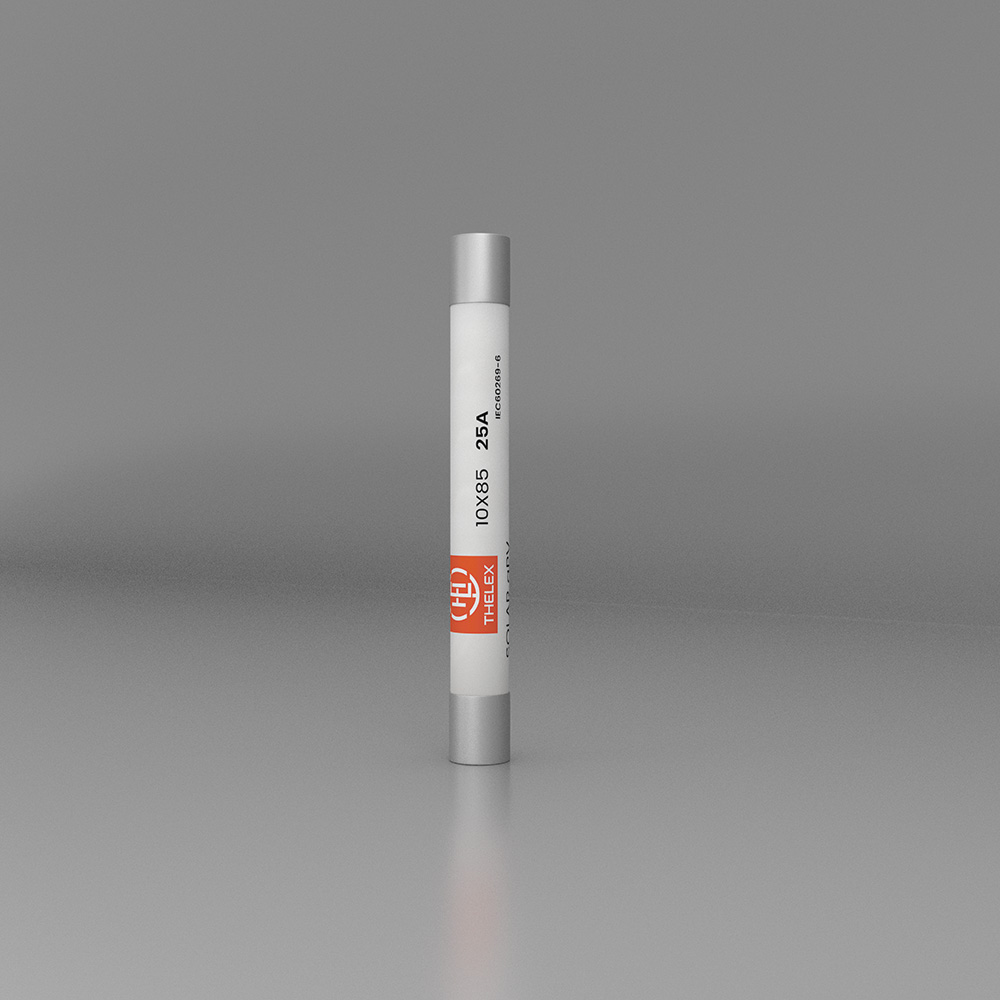

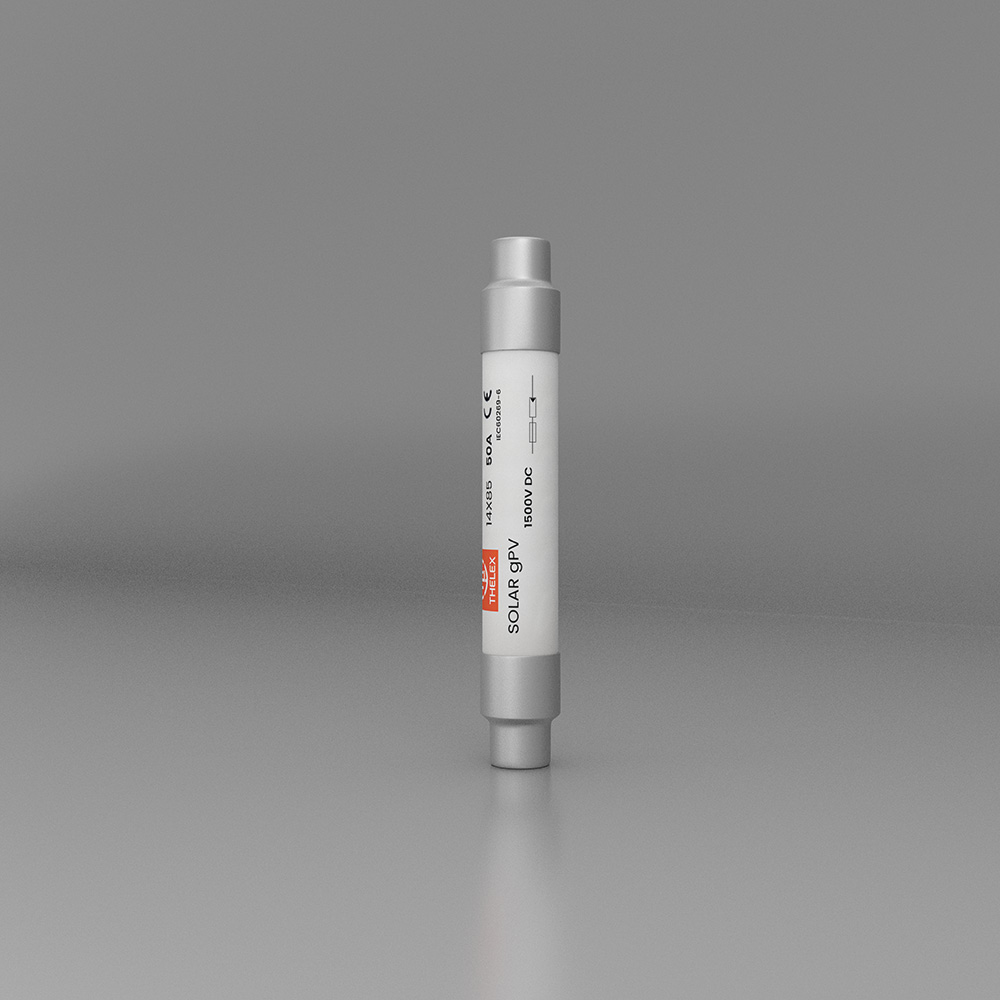

10 x 85 mm and 14 x 85 mm
The compact size of the fuse holder and fuse link allows for easy installation and secure mounting.


Compliance with Standards:
Manufactured according to IEC60269-1 & 2 for fuse holders and IEC60269-6 for fuse links, ensuring compliance with the highest safety and performance standards.


Indication of Invalidation:
The disconnection of the fuse element serves as a clear indication when the fuse is blown, making it easy to identify and replace faulty fuses.


Additional Features:

Compact Size: Despite its powerful protection capabilities, the PV-63T is compact, fitting easily into most electrical systems and panels.



Low Maintenance: Once installed, the fuse holder and fuse link require minimal maintenance, providing a long-term and reliable solution for overcurrent protection.



Enhanced Safety: The PV-63T offers superior protection against electrical hazards, making it ideal for sensitive equipment, industrial machinery, and renewable energy systems.


Applications:

1.Industrial Electrical Systems:
Ideal for protecting circuits in industrial machinery, motor control systems, and electrical panels from overloads and faults.



2.Residential and Commercial Installations:
Suitable for use in residential and commercial buildings to safeguard wiring and appliances from electrical hazards.



3.Renewable Energy Systems:
Commonly used in solar and wind energy systems for protection against overcurrent and short circuits, ensuring safe operation.



4.Power Distribution Systems:
Protects power distribution equipment from electrical faults, improving system reliability and preventing damage to sensitive components.



5.Automotive and Transportation:
Perfect for use in automotive circuits, ensuring the safety of electrical systems in vehicles, trains, and other forms of transportation.


Why Choose the PV-63T Fuse Holder and Fuse Link?

1.High Voltage Capacity: The 1500V maximum continuous operating voltage ensures that the PV-63T is ideal for high-voltage circuits, especially in applications like solar power systems and industrial machinery.



2.Wide Range of Current Ratings: With available current ratings ranging from 2A to 50A, the PV-63T is versatile and can be used for circuits of various sizes, making it suitable for different protection needs in a wide range of applications.



3.Superior Material Quality: The fuse holder is constructed with ABS (FR Material), ensuring durability and resistance to fire, while the ceramic body and pure silver copper terminals in the fuse link provide high conductivity and resistance to wear, ensuring long-lasting performance.



4.Compliance with International Standards: The PV-63T is manufactured according to IEC60269-1, IEC60269-2, and IEC60269-6 standards, providing peace of mind regarding its safety, performance, and reliability in electrical systems.



5.Clear Fault Detection: The fuse holder provides a clear indication of failure through the disconnection of the fuse element, allowing for quick and easy troubleshooting and maintenance.



6.Versatility in Applications: Whether used in solar energy systems, industrial machinery, power distribution panels, or renewable energy systems, the PV-63T offers protection and reliability across diverse industries.



7.Excellent Overcurrent Protection: The PV-63T ensures your electrical systems are protected from overcurrent conditions, minimizing the risk of damage, fires, and other electrical hazards.
