MODEL SPECIFICATION
MODEL AND SPECIFICATION | THACS-II40 |
---|---|
Max. continuous operating voltage Uc (V) | 385 |
No of Poles | 4 Pole |
Max. Discharging Current Imax (kA) (8/20us) | 40 |
Voltage protection level Up (kV) | 2 |
Nominal discharge current (8/20μs) In (kA) | 20 |
Response time tA (ns) | <25 |
Protection Grade | IP20 |
Indication of invalidation | Green normal, red failure |
Application | Incoming line secondary protection |
Remote Signal Function | Can also picking |
Remarks | Other maxi continuous operating voltage can be customized |
Product Tags
- Surge protection device for incoming lines
- High-voltage surge suppressor
- SPD for electrical systems
- Industrial surge protection
- Nominal discharge current surge protector
- High-energy surge protector
- Fast-response surge suppression
- Electrical surge prevention device
- Secondary line surge protection
- Reliable SPD for renewable energy systems

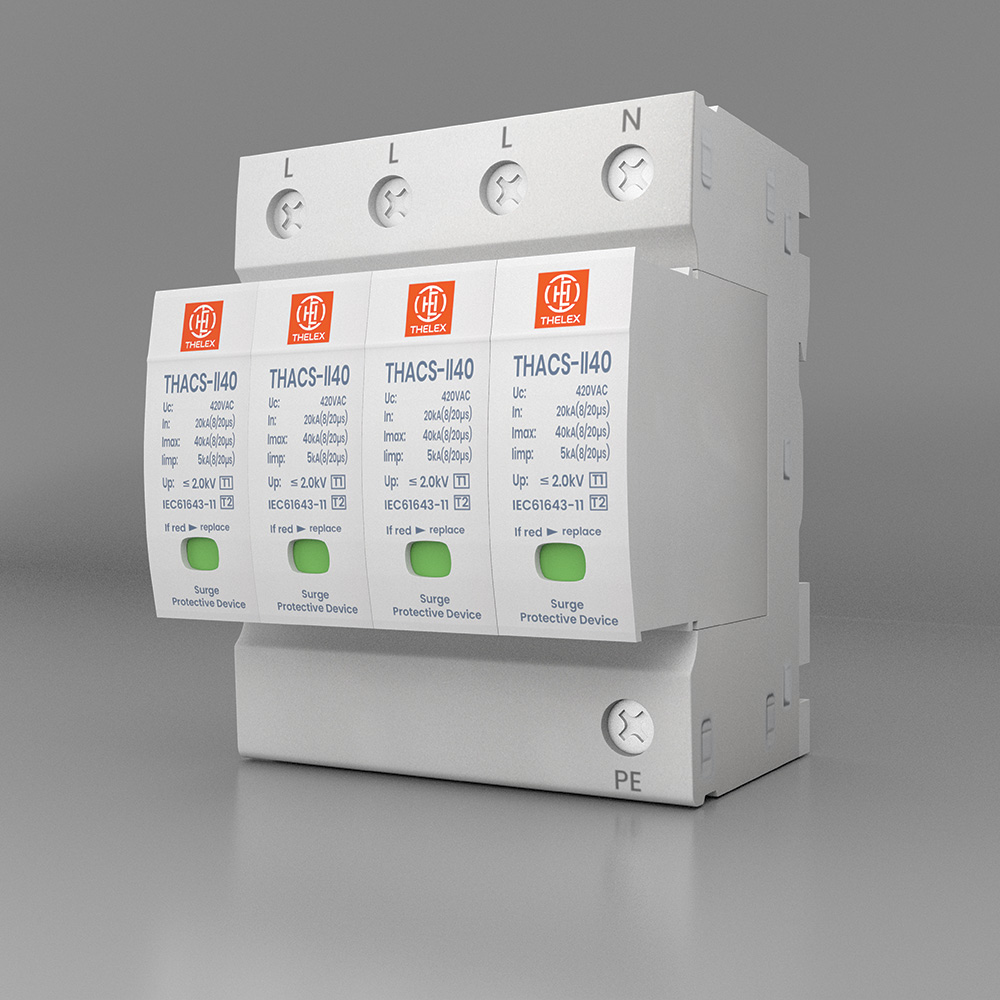

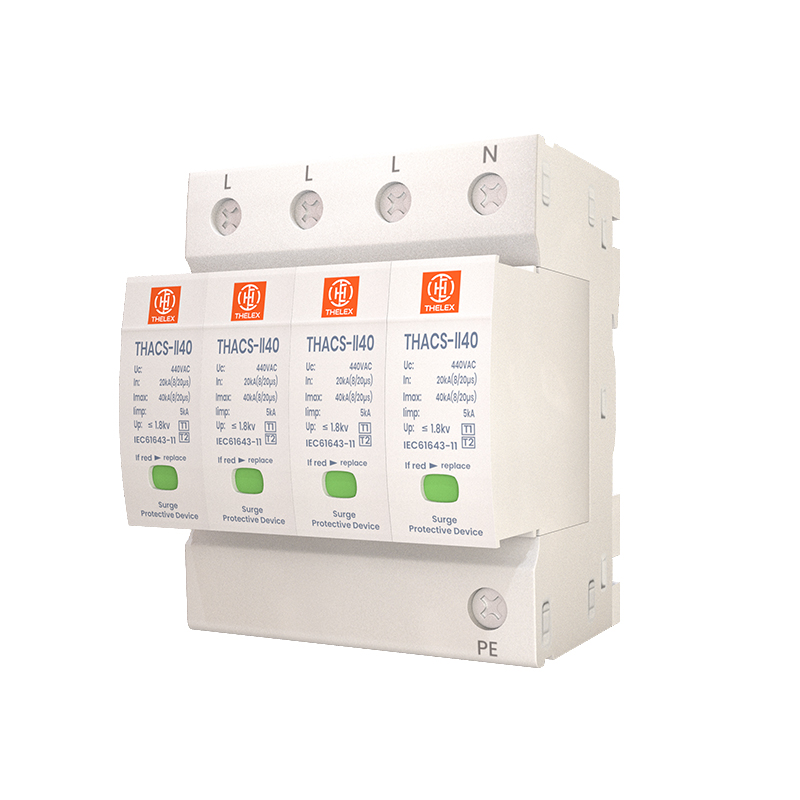

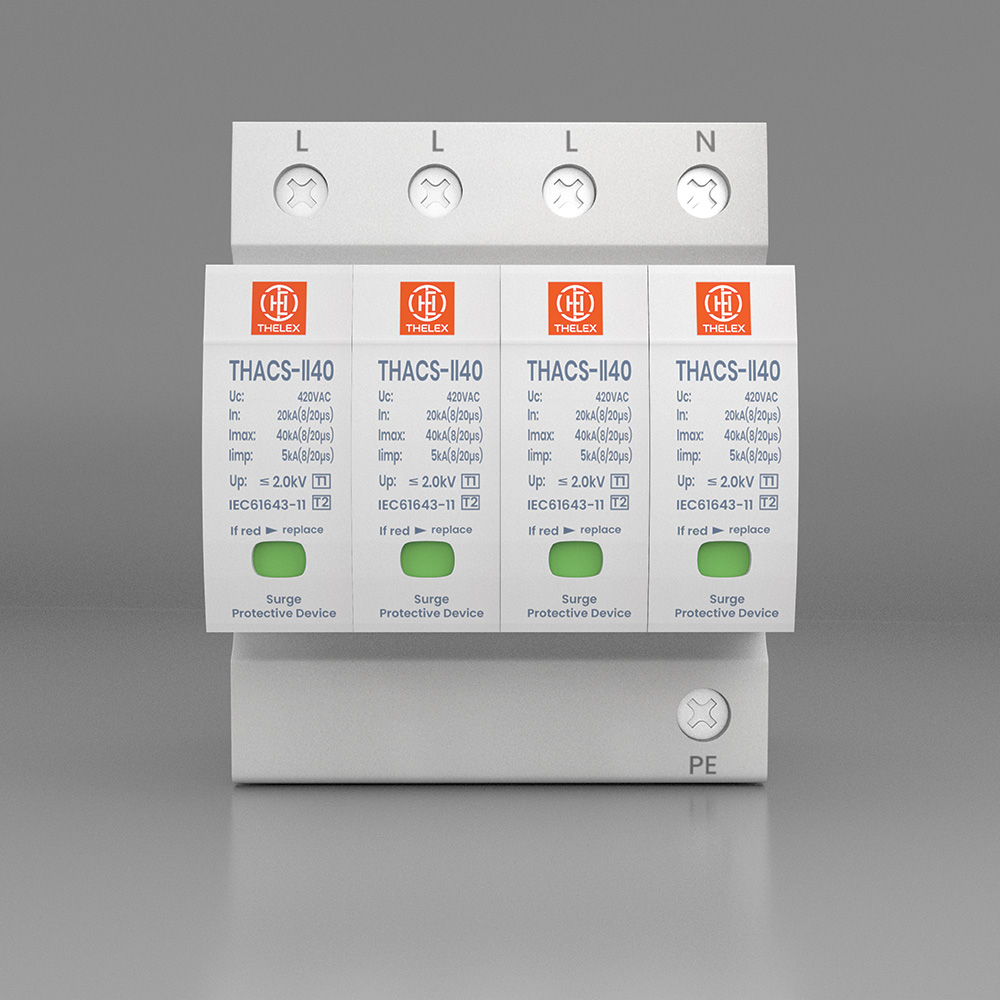

Product Description: THACS-II40 Surge Protection Device (SPD) (AC SPD Type 1+2 40kA) (New Surge)
The THACS-II40 Surge Protection Device (SPD) is a highly efficient solution designed to protect electrical systems from transient overvoltage, lightning strikes, and power surges. Engineered for incoming line secondary protection, it ensures that your critical infrastructure and equipment are safeguarded from harmful electrical disturbances. With its high discharge capacity and quick response time, the THACS-II40 is ideal for use in both industrial and residential applications.
Key Features:
•Max. Continuous Operating Voltage (Uc):
Rated for 385V, the THACS-II40 provides reliable protection for systems operating within this voltage range, making it suitable for a wide array of applications.
•Voltage Protection Level (Up):
With a voltage protection level of 2kV, this SPD ensures superior suppression of high-voltage transients, effectively shielding sensitive equipment from power surges.
•Max Discharging Current (Imax):
The THACS-II40 boasts a maximum discharging current of 40kA (8/20μs), capable of handling extreme surge conditions without compromising performance.
•Nominal Discharge Current (In):
This SPD is capable of handling 20kA (8/20μs) of nominal discharge current, providing reliable protection under typical surge events.
•Fast Response Time (tA):
The THACS-II40 features an ultra-fast response time of less than 25 ns, ensuring immediate surge protection and reducing the risk of equipment damage.
•Protection Grade (IP20):
Rated IP20, the device offers protection from solid objects larger than 12mm, ensuring durability and performance even in challenging environments.
•Indication of Invalidation:
The THACS-II40 includes a clear visual indication system:
•Green for normal operation
•Red for failure, making it easy to monitor the status of the device.
•Remote Signal Function:
The THACS-II40 is equipped with a remote signal function, allowing users to receive alerts and monitor the status of the device remotely, ensuring optimal protection at all times.
•Customizable Voltage Rating:
The device offers customization for other maximum continuous operating voltages, ensuring compatibility with a wide range of electrical systems.
Additional Features:
•Robust Surge Protection: The THACS-II40 protects electrical systems from lightning strikes, switching transients, and other surge-induced voltage spikes.
•Enhanced Durability: Designed to provide long-lasting performance under challenging conditions, offering extended protection for electrical infrastructure.
•Simple Installation and Operation: Easy-to-install design and simple, user-friendly indicators make it an efficient choice for various applications.
•IEC61643-11 Standard Compliance: Fully compliant with international surge protection standards, ensuring top-tier performance and safety.
Applications:
1.Incoming Line Secondary Protection:
The THACS-II40 is perfect for protecting secondary lines in electrical systems, safeguarding equipment from transient overvoltage and ensuring the reliability of power distribution.
2.Industrial Equipment Protection:
Protect industrial machinery, control panels, and electrical devices from damaging power surges, preventing downtime and costly repairs.
3.Residential Surge Protection:
Ideal for safeguarding household appliances, HVAC systems, and other sensitive devices from power surges caused by lightning or electrical faults.
4.Telecommunications Infrastructure:
The THACS-II40 ensures the protection of telecom equipment, ensuring continuous and reliable communication by shielding against electrical disturbances.
5.Renewable Energy Systems:
Protect solar panels, wind turbines, and other renewable energy devices from power surges, extending the lifespan of your equipment and ensuring consistent energy generation.
Why Choose THACS-II40?
1.High Surge Handling Capacity: With 40 kA Imax and 20 kA In, it offers superior protection against high-energy surges and voltage spikes.
2.Fast Surge Response: The device offers an extremely fast response time of less than 25 nanoseconds, ensuring that sensitive equipment is protected immediately from overvoltage events.
3.Clear Monitoring and Status Indication: The green and red status indicators help users easily track the device's health, ensuring timely action when failure occurs.
4.Remote Monitoring Feature: The remote signal function allows users to monitor the status and condition of the surge protector, even from a distance, ensuring prompt detection of any issues.
5.Compact and Efficient Design: The IP20-rated design is easy to install and reliable in normal operating conditions.
6.Customizable Voltage Options: The device can be tailored to suit various applications, with voltage levels adaptable to your system's specific requirements.
