MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-II40 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 48 | 175 | 275 | 320 | 385 | 420 | 750 | 1000 | ||
| No of Poles | 4 Pole | |||||||||
| Max. Discharging Current Imax (kA) (8/20us) | 40 | |||||||||
| Voltage protection level Up (kV) | 0.6 | 1.3 | 1.5 | 1.6 | 1.8 | 2.0 | 3.0 | 3.5 | ||
| Nominal discharge current (8/20μs) In (kA) | 20 | |||||||||
| Response time tA (ns) | < 25 | |||||||||
| Protection Grade | IP20 | |||||||||
| Standard | IEC61643-11 | |||||||||
| Indication of invalidation | Green: Normal, red: Invalidation | |||||||||
| Application | Several protection for in line | |||||||||
| Remote Signal Function | Can also picking | |||||||||
| Remarks | Other maxi continuous operating voltage can be customized | |||||||||
Product Tags
- THACS-II40 Surge Protection Device
- Surge Protector for Line-to-Line
- High-Voltage Surge Protection IEC61643-11 Surge Protection
- 40kA Surge Protector
- Voltage Protection for Industrial Equipment Max Discharge Current Surge Protection
- Nominal Discharge Current Surge Protector
- Electrical Surge Protection System
- Surge Protection for Renewable Energy Systems
- Surge Protection for Power Distribution Panels
- Fast Response Surge Protector
- IP20 Surge Protection Device

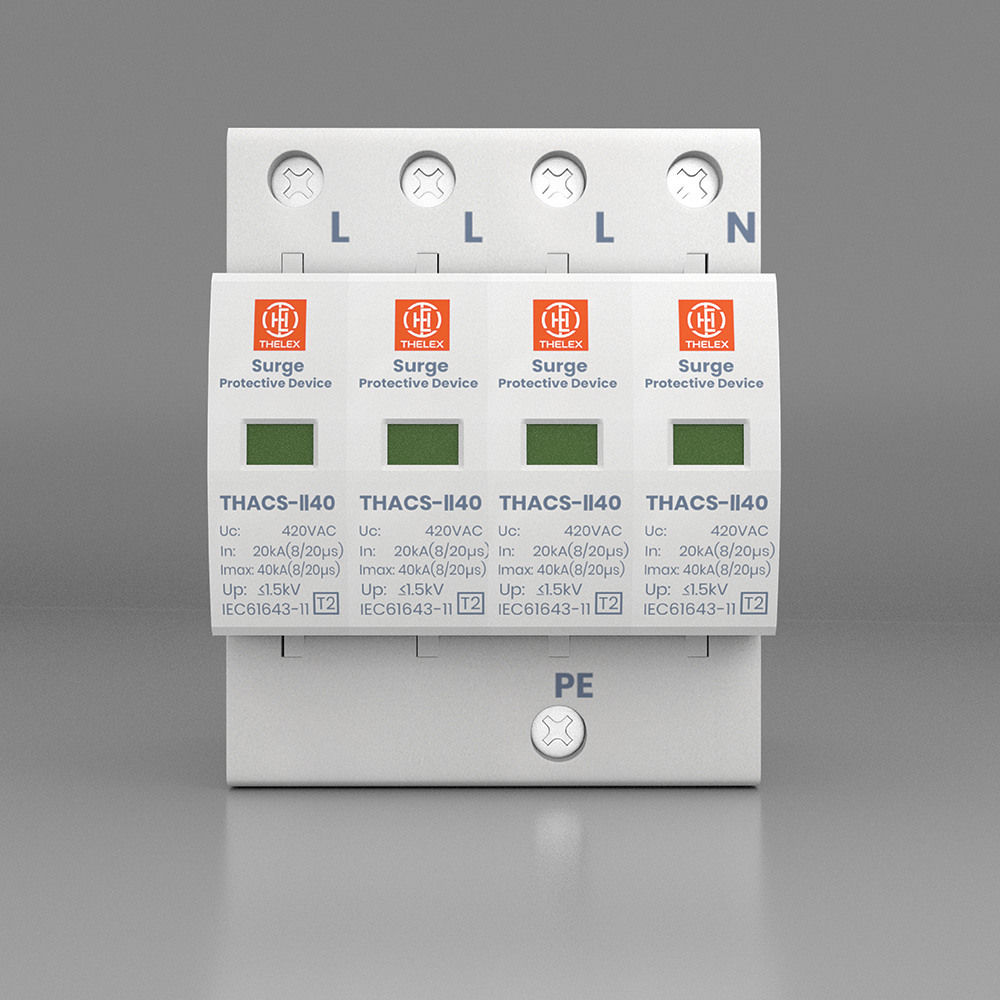

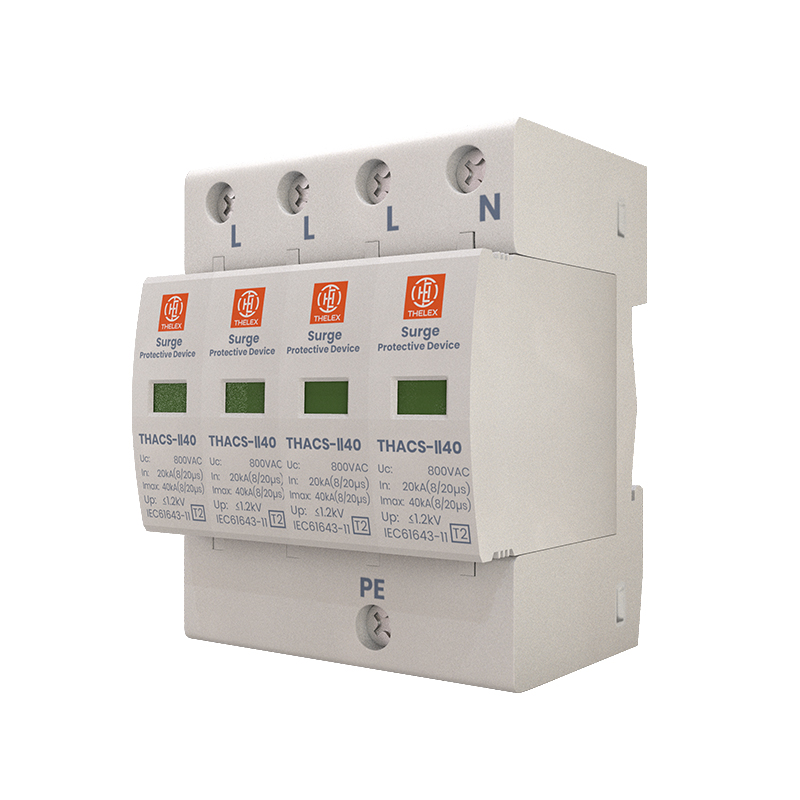

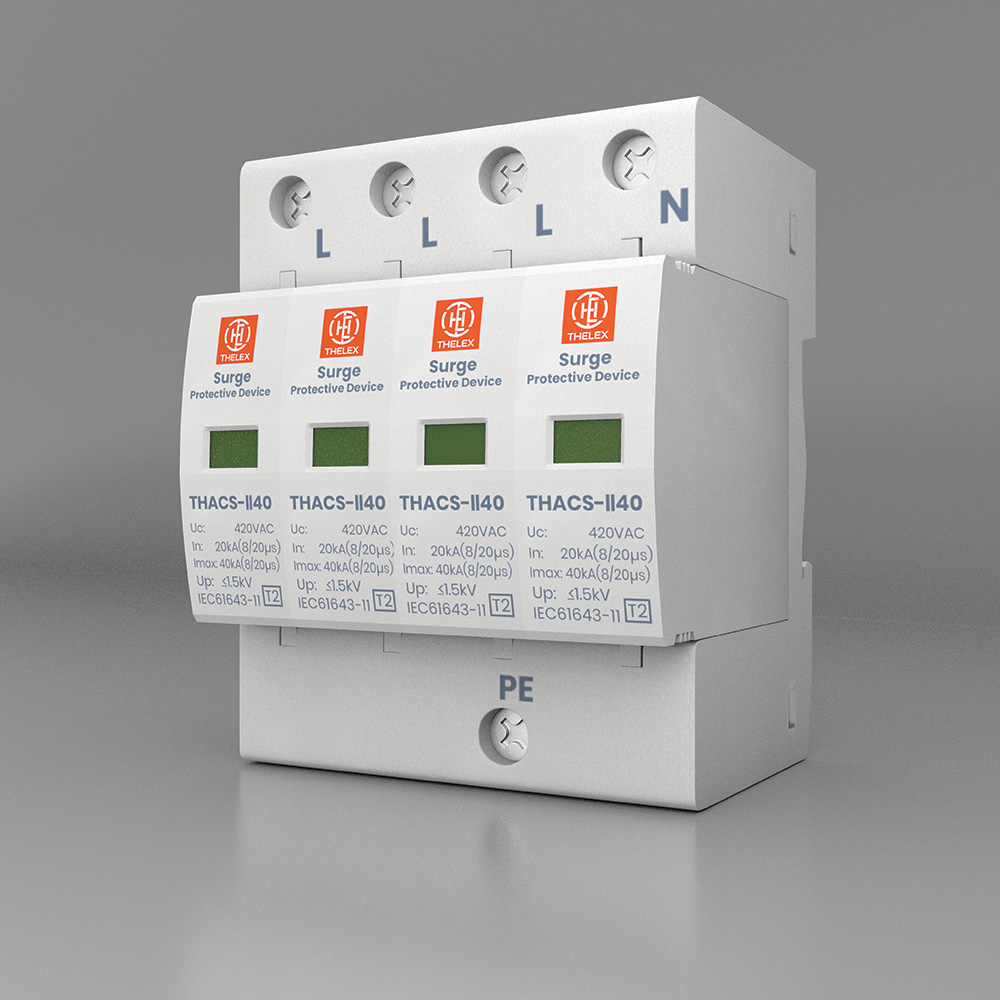

Product Description for THACS-II40 Surge Protection Device (SPD) (40kA) (18mm OB)
The THACS-II40 Surge Protection Device is engineered to provide high-level protection against transient voltage spikes and surges for electrical systems. With compliance to IEC61643-11 standards, this device ensures the safety of various electrical applications by effectively absorbing surges and preventing damage to sensitive equipment. The THACS-II40 is suitable for Line-to-Line (L-L) protection, safeguarding electrical circuits from overvoltage's, lightning strikes, and other power disturbances that can compromise system integrity.
Key Specifications:
•Max. Continuous Operating Voltage (Uc):
•Available in multiple voltage ratings: 48V, 175V, 275V, 320V, 385V, 420V, 750V, and 1000V. Custom voltage options are also available to suit specific needs.
•Voltage Protection Level (Up):
•Protection levels ranging from 0.6kV to 3.5kV (Line-to-Line voltage).
•Max. Discharging Current (Imax):
•40kA (8/20μs waveform), ensuring the ability to handle extreme surge conditions.
•Nominal Discharge Current (In):
•20kA (8/20μs waveform), providing robust protection during smaller, but still significant, surges.
•Response Time (tA):
•Less than 25 nanoseconds, enabling rapid response to transients for quick protection.
•Protection Grade:
•IP20 (International Protection rating), suitable for environments with low exposure to dust and moisture.
•Indication of Invalidation:
•Green LED indicates normal operation, while Red LED signals failure, allowing for easy monitoring and maintenance.
•Standard Compliance:
Meets the requirements of IEC61643-11 for surge protection devices.
Additional Features:
•Customizable Voltage Options:
The THACS-II40 offers flexibility with its customizable voltage levels, making it adaptable for various applications and protection needs.
•Remote Signal Function:
The device supports integration with remote monitoring systems, allowing for real-time alerts when the protection device is activated, making it easier to manage and maintain.
•Reliable and Durable:
Designed for both durability and long-term performance, the THACS-II40 offers reliable surge protection over its lifespan, minimizing the risk of damage to critical systems.
Applications:
1.Line-Level Surge Protection:
The THACS-II40 provides essential protection for electrical systems against overvoltage surges. It is ideal for use in industrial and commercial power distribution panels, as well as residential installations.
2.Industrial Equipment Protection:
Safeguard sensitive equipment such as motors, pumps, control systems, and other electrical machinery from power surges.
3.Power Distribution Systems:
The device is essential for protecting power distribution systems in factories, offices, and large residential complexes from lightning-induced or switching surges.
4.Renewable Energy Systems:
Protect solar inverters and other renewable energy equipment from high-voltage spikes, ensuring the longevity and efficiency of energy systems.
5.Telecommunication Equipment:
It helps protect critical telecommunication devices such as servers, network switches, and routers, preventing downtime due to electrical surges.
6.Home Appliances and Electronics:
Ideal for residential use, protecting home electronics, televisions, air conditioners, and other appliances from harmful overvoltage incidents.
Why Choose the THACS-II40?
The THACS-II40 SPD is engineered to deliver exceptional protection and peace of mind. Its robust discharge capacity, fast response time, and customizable features make it an ideal choice for various industries and applications. With this device, you ensure the safety and efficiency of your electrical systems, avoiding costly downtime and equipment damage.
