MODEL SPECIFICATION
MODEL AND SPECIFICATION | TX-AC-320V-40-T2 | ||
---|---|---|---|
Max. continuous operating voltage Uc (V) | 320V | ||
No of Poles | 2 Pole | ||
Max. Discharging Current Imax (kA) (8/20us) | 40 | ||
Phase | 1 ph | ||
Voltage protection level Up (kV) | 1.5 | ||
Nominal discharge current (8/20μs) In (kA) | 20 | ||
Response time tA (ns) | < 25 | ||
Protection Grade | IP20 | ||
Indication of invalidation | Green normal, red failure | ||
Application | Incoming line secondary protection | ||
Remote Signal Function | Can also picking | ||
Remarks | Other maxi continuous operating voltage can be customized |
Product Tags
- TX-AC-320V-40-T2 Surge Protection
- Surge Protection for Incoming Lines
- 40kA Surge Protector
- Nominal Discharge Current Surge Protection Single-Phase Surge Protection
- Surge Protection for Industrial Systems
- IEC61643-11 Surge Protection
- Protection for Residential Electrical Systems Surge Protection for Renewable Energy
- IP20 Surge Protector
- Surge Protection with Remote Signal Function
- 320V Surge Protection Device

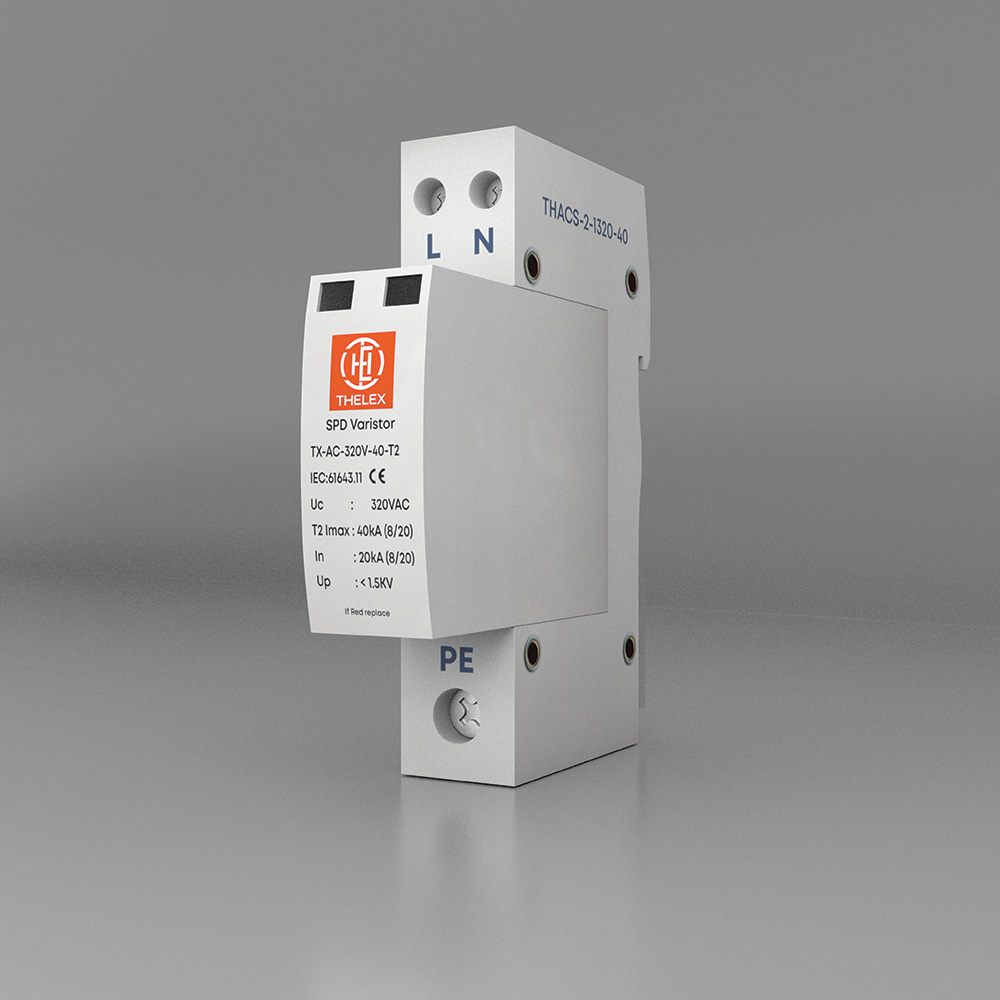

Product Description for TX-AC-320V-40-T2 Surge Protection Device (40kA) (1Ph Regular)
The TX-AC-320V-40-T2 Surge Protection Device is engineered for high-performance protection against transient overvoltage's, offering superior surge protection for electrical systems. Specifically designed for incoming line secondary protection, this device safeguards sensitive equipment from damage caused by lightning, switching transients, and other electrical disturbances. It is ideal for single-phase systems with a continuous operating voltage of 320V, providing reliable and efficient protection to keep your infrastructure secure.
With its robust 40kA discharging current capacity (8/20μs waveform), the TX-AC-320V-40-T2 is built to handle high-power surge events while maintaining operational integrity. Designed to comply with IEC61643-11 standards, this surge protector ensures high reliability and long-lasting performance.
Key Specifications:
•Max. Continuous Operating Voltage (Uc):
320V, designed for single-phase systems, ensuring consistent protection for 320V electrical setups.
•Voltage Protection Level (Up):
1.5kV, providing sufficient protection for most residential and light commercial applications.
•Max. Discharging Current (Imax):
40kA (8/20μs), capable of handling large surge events and preventing damage to critical equipment.
•Nominal Discharge Current (In):
20kA (8/20μs), effectively suppressing common surge occurrences without compromising protection.
•Response Time (tA):
< 25 nanoseconds, ensuring rapid response to transient voltage spikes, minimizing potential damage.
•Protection Grade:
IP20, providing protection against dust and accidental contact, ensuring safety and durability.
•Indication of Invalidation:
Green LED for normal operation, and Red LED for failure, making it easy to monitor the device's status.
Additional Features:
•Customizable Voltage Ratings:
Available in various voltage configurations to suit different applications. Custom continuous operating voltage options available upon request.
•Remote Signal Functionality:
Offers remote monitoring capabilities, making it easier to integrate into smart systems for real-time alerts and operational control.
•Reliable and Durable Construction:
Built to withstand demanding conditions, ensuring long-lasting protection in residential, commercial, and industrial environments.
Applications:
1.Incoming Line Secondary Protection: Protects against surges from the power supply, ensuring secondary side equipment remains safe from high-voltage spikes.
2.Residential and Commercial Power Systems: Ideal for single-phase systems, safeguarding electrical appliances and devices from transient overvoltage events.
3.Industrial Equipment Protection: Protects industrial systems, such as machinery, inverters, and motors, from transient damage, ensuring continuity and operational efficiency.
4.Telecommunications Equipment Protection: Essential for safeguarding telecommunications infrastructure like routers, servers, and communication lines from voltage surges.
5.Renewable Energy Systems: Protects solar inverters, wind turbines, and battery systems from surge-related damage, ensuring reliable energy production.
6.Home Appliances and Electronics: Shields sensitive home electronics like computers, air conditioners, and entertainment systems from damaging surges.
Why Choose TX-AC-320V-40-T2?
1.Reliable Surge Protection: Handles high-energy surges with a discharge capacity of up to 40 kA.
2.Quick Response Time: Activates in under 25 nanoseconds, ensuring minimal damage to connected devices.
3.Customizable Design: Tailored voltage configurations available for specialized needs.
4.User-Friendly Monitoring: Clear green and red indicators simplify diagnostics and maintenance.
5.Remote Integration: Supports remote signaling for enhanced system monitoring.
6.Standards-Compliant: Engineered to meet international surge protection standards.
7.Wide Application Range: Versatile design suitable for residential, commercial, and industrial systems.
